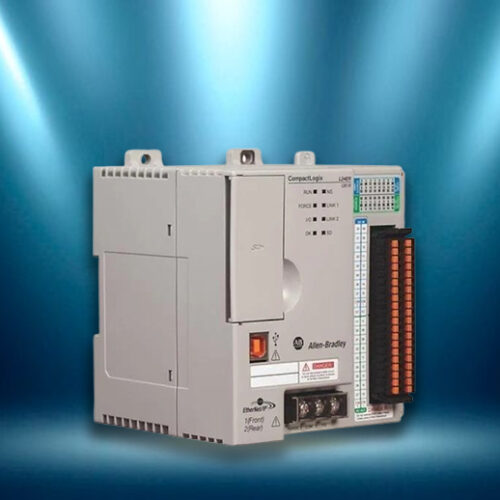

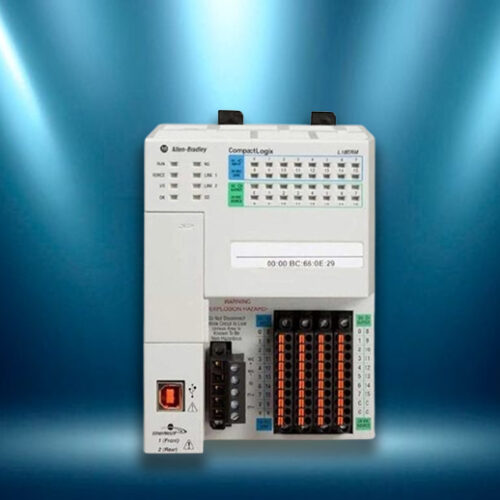

Allen Bradley Compact Logix Plc
- Provides a Logix based real-time controller that runs an instance of Windows 10 IoT Enterprise
- Supported in Studio 5000 Logix Designer® version 32
- Is ideal for mid-size to large applications requiring high performance control and data throughput
- Enables high-speed I/O, motion control, and Device Level Ring/Linear topologies
- Includes three GbE Ethernet/IP ports that enable high-speed communications, I/O, and motion control (two are configurable, and support Dual IP address or Device Level Ring)
- Includes one GbE Ethernet port as a dedicated commercial OS network interface
- Supports up to 31 local Bulletin 5069 Compact I/O™ modules
- Offers enhanced security features that include digitally-signed controller firmware, controller-based change detection, and a log of role-based access control to routines and Add-On instructions
- Allows users to deploy Windows 10 based off the shelf and/or custom applications while tightly integrated with real time Logix control
- Includes integrated DisplayPort for high definition industrial monitor connectivity
- Includes two USB 3.0 ports for OS peripheral and expanded data storage capability
Micrologix 1400
- Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
- Built-in LCD with backlight lets you view controller and I/O status
- Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
- Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
- As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
- Two serial ports with DF1, DH-485, Modbus RTU, DNP3, and ASCII protocol support
- 10 KB words in user program memory with 10 KB words in user data memory
- Up to 128 KB for data logging and 64 KB for recipe
- Programmed with RSLogix 500® software

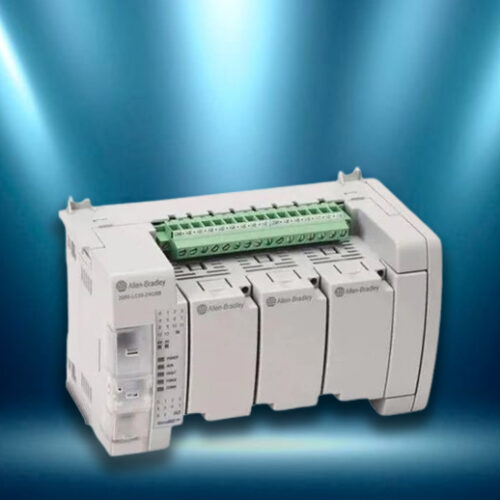

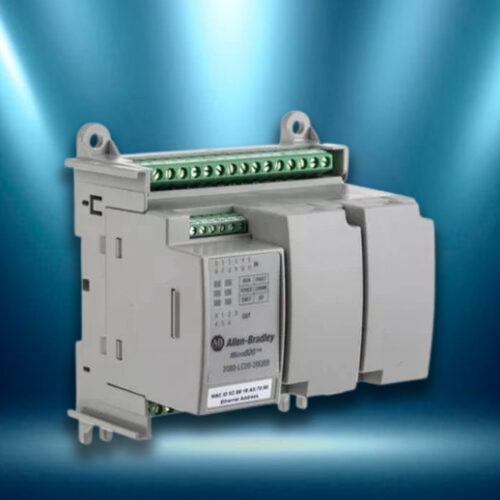

Allen Bradley Micro 850 Plc
Gain greater flexibility with expanded capabilities in Micro850 controller catalogs 2080-L50E*
- Increased connectivity with Class 1 implicit messaging capability**
- Simplified integration to PowerFlex® 520 series and Kinetix® 5100 drives through pre-defined tags**
- Improved controller performance with increased I/O response and code execution time
- Increased protocol connectivity with expanded DF1 communications support
- Easy recognition of new controller options with catalog numbers containing E, for Ethernet connectivity, after the controller series. For example 2080-L50E
Analog Output Module
- Offers 20-point controllers
- Provides embedded 0...10V non-isolated four channel analog input and one channel analog output for speed control of an AC drive
- Provides embedded communications via non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port
- Communicates via EtherNet/IP™
- Provides embedded support for up to four 10k thermistor temperature inputs
- Supports program download through USB with an optional 3.5-in. Remote LCD
- Supports up to two Micro800™ Plug-in Modules
- Supports microSD™ card for program transfer, datalog, and recipe management
SLC-500
- Ladder-logic and structured-text programming
- Advanced instruction set including file handling, sequencer, diagnostic, shift register, immediate I/O, and program control instructions
- Built-in RS-232/422/423 communication port
- DeviceNet and ControlNet I/O on selected processors
- One or more on-board ports that can be configured for either Data Highway Plus™ (DH+) or Universal Remote I/O
- Universal Remote I/O ports can be configured as an I/O scanner port or an I/O adapter port
- Ethernet PLC-5® controllers and the Ethernet interface module (1785-ENET) provide built-in web services
- Backup options for increased fault tolerance through the ControlNet™ Hot Backup module or the PLC-5 Backup Communication module
Allen Bradley Plc
- Supports Integrated Motion on EtherNet/IP™, integrated Sercos™ motion, and analog motion
- Supports full controller redundancy and removal and Removal Insertion Under Power (RIUP)
- Communicates via EtherNet/IP, ControlNet™, DeviceNet™, Data Highway Plus™, Remote I/O, SynchLink, and third-party process and device networks
- Lets you program using relay ladder logic, structured text, function block, and SFC languages
- Includes conformal coating on products that include a "K" in the catalog number, to help protect in harsh environments
- Includes a 1756 Slim Power Supply option for series B and C standard and 1756 XT Chassis, which offers a 29% reduction in width when space is limited
- Offers chassis with up to 17 slots in standard, conformal coated, and extreme temperature versions
- Delivers standard and safety On-Machine™ control that increases uptime and reduces cost
- Minimizes hardware in the control cabinet with placement directly on the machine

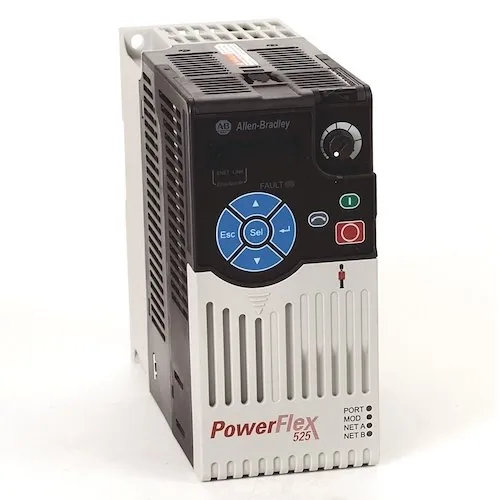

Powerflex 500
- Power ratings of 0.4…22 kW / 0.5…30 Hp in global voltages from 100...600V
- Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration
- Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
- Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
- Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
- Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
- Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
- Features Safe Torque-off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
HMI
Visualization and HMI solutions help you address your productivity, innovation, and globalization needs. Our portfolio provides a consistent look and feel for electronic operator interface terminals, distributed client/server HMI, and information software. Programming tools and advanced software applications include remote access and data analysis to accelerate development and improve efficiency.

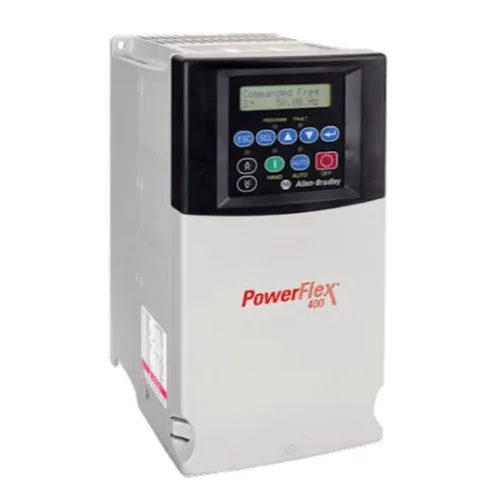

PowerFlex 400 AC Drives
- Power ratings:
- 200…240V: 2.2…37 kW / 3…50 Hp / 12…145 A
- 380…480V: 2.2…250 kW / 3…350 Hp / 6…460 A
- NEMA/UL Type 1, 12, 3R, and 4 enclosures
- Flange-mount and panel-mount options
- V/Hz control, slip compensation, and PID control
- Internal RS-485, Common Industrial Protocol (CIP), embedded Modbus® RTU, Metasys® N2, and Apogee® FLN P1-plant floor network protocols
- Supports Drive Serial Interface (DSI) communication modules
- Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features
- Packaged drive options include disconnect and contactor bypass packages
- Available line reactor option
- Configuration and programming via integral keypad, remote keypad, or DriveTools™ SP software
- Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Powerflex 40
- Power ratings:
- 100...120V: 0.4...1.1 kW / 0.5...1.5 Hp / 2.3...6 A
- 200...240V: 0.4...7.5 kW / 0.5...10 Hp / 2.3...33 A
- 380...480V: 0.4...11 kW / 0.5...15 Hp / 1.4...24 A
- 500...600V: 0.75...11 kW / 1...15 Hp / 1.7...19 A
- IP20 NEMA/UL Type Open, plate drive, flange mount, IP66 NEMA/UL Type 4X/12, and DIN rail
- Optional IP30 NEMA/UL Type 1 conversion kit
- Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
- Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
- V/Hz and sensorless vector control, as well as process PID
- Integral RS-485 communication
- Optional serial converter module for use with any controller with DF1 messaging
- Optional DeviceNet™, ControlNet™, and EtherNet/IP™, Profibus DP, BACnet™, and LonWorks® communication modules
- Drive overload protection, ramp regulation, and flying start
- StepLogic® allows operation as an independent position controller
- Configuration and programming via integral LCD keypad, remote keypad, or software
- Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduce development time
